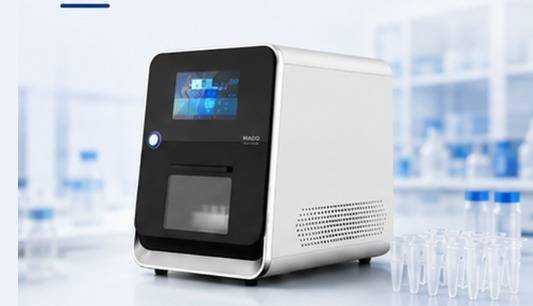

2026-07-0932 Channe Automated Nucleic Acid Extractor
Product Number: EX-3201
Parameters
| Item | Parameter |
| Working Principle | Magnetic Bead Method |
| Sample Throughput | 1–32 samples |
| Processing Volume | 20μL–1100μL (Double Mode optional: 2200μL) |
| Plate Type | 96-well deep well plate |
| Number of Magnetic Rods | 32 |
| Magnetic Bead Recovery Rate | More than 95% |
| Inter-well Purification Variation | CV < 5% |
| Heating Function | Lysis heating and elution heating (ambient temperature to +125°C); copper heating module optional |
| Mixing Mode | Slow, medium, fast; 6 editable gears (1–6) |
| Compatible Reagents | Open platform, compatible with all magnetic bead-based extraction reagents |
| Extraction Duration | 15–60 minutes per run (depends on test item) |
| Operation Interface | 10-inch color capacitive touch graphical display, user-friendly Chinese interface (English optional); no external computer required |
| Internal Protocols | Freely editable and storable; unlimited storage capacity (millions of protocols) |
| Protocol Management | 4 standard USB ports, Ethernet port; compatible with mouse, keyboard, 1D & 2D barcode scanners |
| Expansion Interfaces | Parallel programming supported on device; create, edit and delete protocols |
| Disinfection Function | UV sterilization |
| Ventilation | Fan exhaust (side exhaust, rear exhaust and HEPA filter optional); customizable activation time |
| Data Storage | Built-in SSD for local data storage |
| Operating Temperature | 10–40°C |
| Operating Humidity | 10–90% relative humidity (non-condensing) |
| Power Supply | AC 100–240 V, 45–65 Hz |
| Overall Dimensions (D×W×H) | 350 mm × 545 mm × 400 mm |
| Weight | 27 kg |
Advantages
- Compact size, easy transportation and small laboratory footprint;
- Professional structural design, nearly silent operation during running;
- Highly universal operation software, compatible with extraction kits from all manufacturers.
