Product Number: ME120

Description

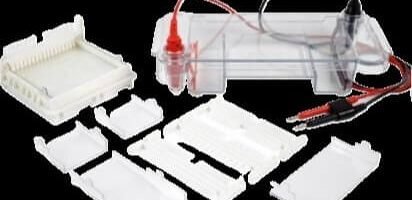

It is mainly composed of an electrophoresis down tank, a easily replaceable electrode stand, a top cover, gel trays, a glue caster and sample combs.

This electrophotoresis tank and electrophoresis power supply constitute electrophoresis device for rapid separation of DNA and NA samples.

Features

1. Gel size(L×W): 6cm×6cm; 12cm×6cm; 6cm×12cm; 12cm×12cm.
2. Sample combs: 25+11 teeth; 13+6 teeth; 18+8 teeth; 2+3 teeth.
3. Thickness of sample combs: 1.0mm, 1.5mm, 2mm.
4. Main part is made of PC by injection mould in beautiful shape.
5. Electrode is made of precious metal platinum with electrolytic corrosion and high temperature resistance, more than 99.95% high purity, it has good electrical conductivit, easy clean and replaceability.
6. Normal working conditions: ambient temperature (0~40)℃; relative humidity ≤80%; none strong vibration around; test bench should be kept level.
7. Electrophoresis tank can work 24hrs continuously.
8. Power off when open the cover, it is safe.
9. Maximum voltage allowed for an external electrophoresis power supply is 200V, Electricity is 200mA.
10. Dimension(L×W×H): 31cm×15cm×9cm.
11. Buffer capacity: 650ml.
12. N.W.: 1.1kgs.
